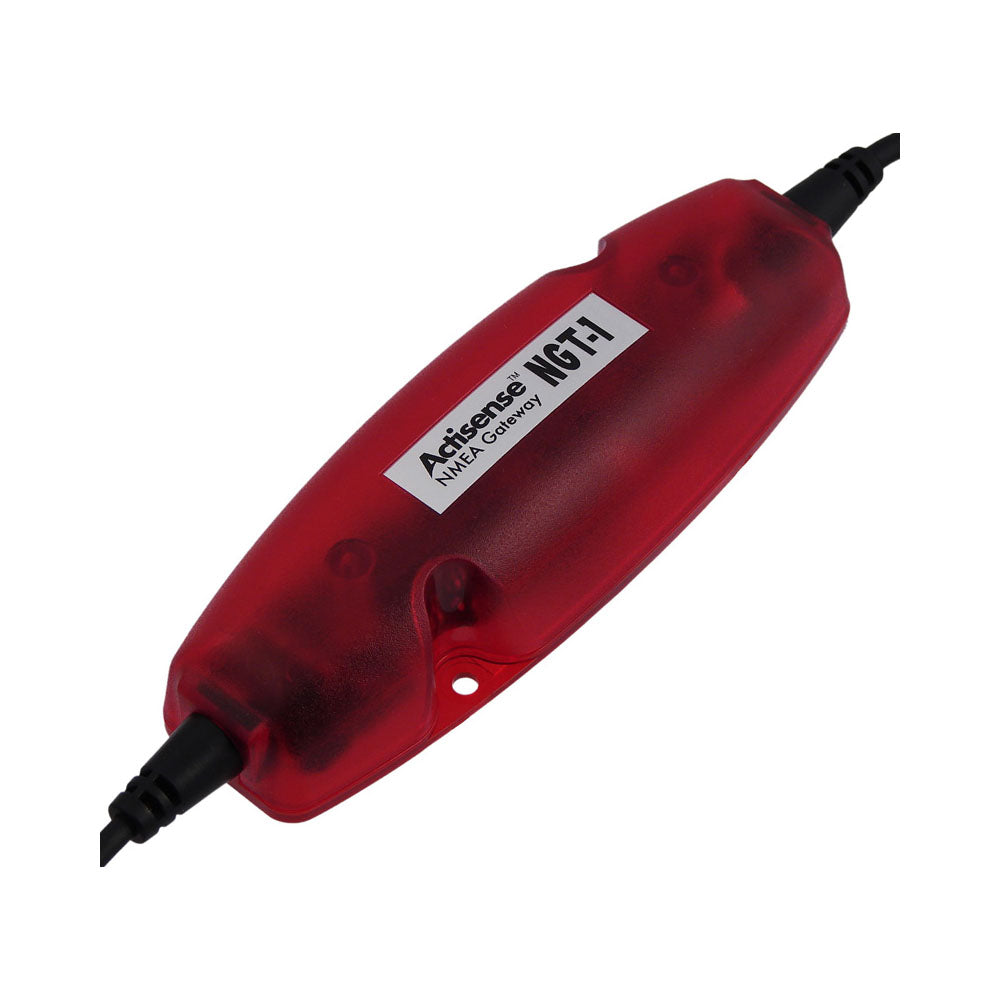

Actisense NGT-1 NMEA 2000 to PC Gateway - ISO version

• Vital NMEA 2000 diagnostic tool
• USB version is fully isolated to prevent dangerous ground loops
• ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
• Up to 230 400 baud data transfer rate
• Integrated 1.5m drop cable
• Diagnostic receive LEDs

The diagnostic NMEA Reader software allows viewing of NMEA 2000 messages with configuration options enabling some set-up of Actisense products on the NMEA 2000 bus.

The handy firewall feature enforces the NMEA 2000 bus rules so software developers can create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time.

With the upcoming ‘Third Party Gateway’ status leading chart plotter software will be able to be certified to work with the NGT-1.

BENEFITS

• Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
• Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
• Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
• Configure and flash-update Actisense products on the bus
