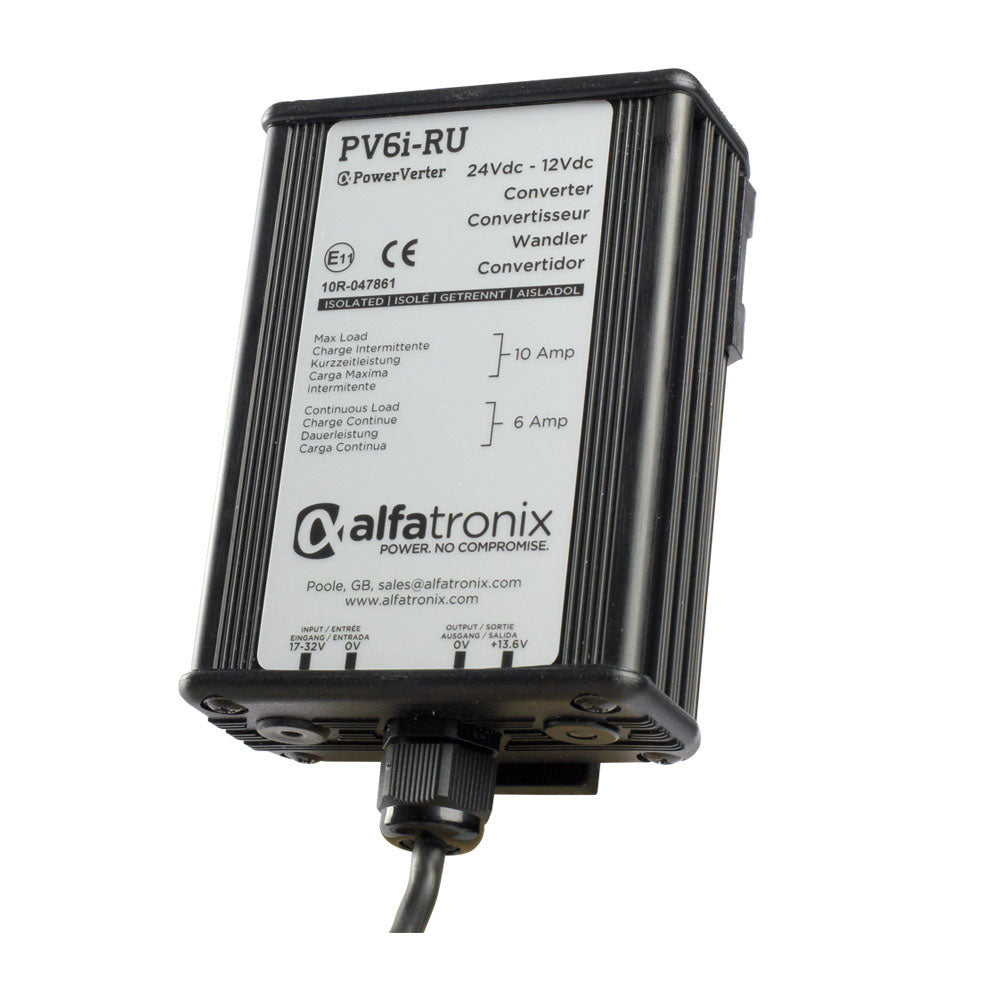

Alfatronix Powerverter IP65 Isolated 24-12VDC Converter - 72W (6A)

• Power: 72W (6A) Isolated
• Input Voltage: 24VDC
• Output Voltage: 12VDC
• Dimensions: 146 x 91 x 52mm
• Weight: 510g

Harsh Enviroments

These products offer the same great electrical characteristics as alfatronix\'s PowerVerter and DD Series but are provided in ‘Ruggedised\' casings for use in harsh environments. Using the well known Ingress Protection System the product range has been tested and subjected to demanding environmental conditions and awarded a rating of IP65. All Ruggedised PowerVerters are enclosed in a durable aluminium extrusion. The low mass Surface Mount Technology components are also less prone to damage from vibration and shock further increasing the reliability of the units.

Innovative Technology

Utilising the same GORE-TEX® technology that is used in extreme outdoor clothing the ruggedised range is able to breathe freely without compromising the water tight and dust tight seal. This free-flow of air ensures that the pressure remains equal inside and outside the unit thus allowing it to operate within a large temperature range and at varying altitudes safely.

Fast Installation

All the products fit onto a ‘Click ‘n\' Fit\' mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces. It is easy to fit the clip into awkward places then simply click the unit into position.

Anti-Vibration

As well as being dust and water tight to IP65 the units are vibration resistant. They have an anti-vibration cable gland fitted into a hexagonal recess to prevent unwanted knocks from loosening it so they can be fitted into rugged enviroments care-free.

Additional Features

The RU range has the same features as the standard PV & DD range but in addtion they also offer the following benefits:

• Dust water and impact resistant to IP655
• Breathable vent to prevent unwanted build up of pressure
• Anti-vibration cable gland
• Supplied with 1m of cable as standard

Product Variants

Many PowerVerter-RU and DD-RU Series products can be configured with alternative output voltages etc for specialist applications. Please call our sales team to discuss your requirements.
