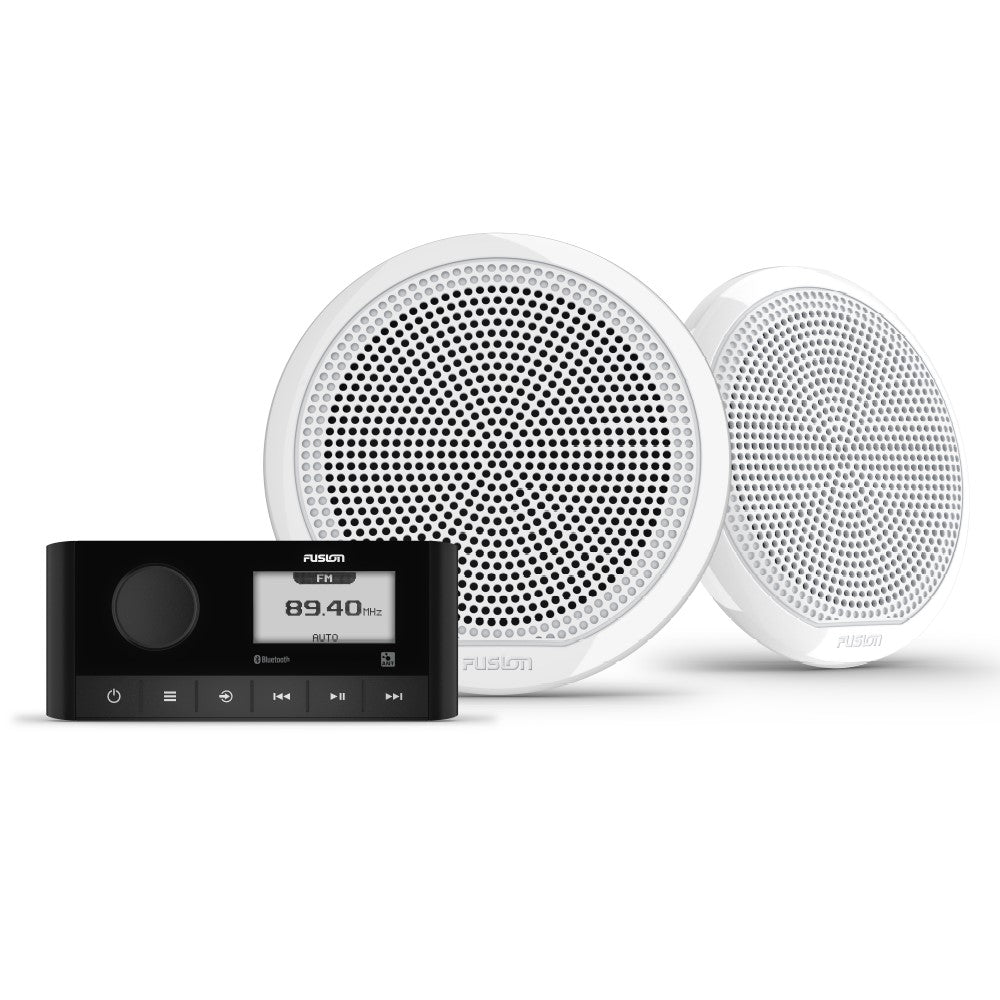

Fusion MS-RA60 Marine Stereo & EL 6.5" 80W Classic White Speakers
Fusion MS-RA60 Marine Stereo & EL 6.5" 80W Classic White Speakers
SKU:233-0100240551
Couldn't load pickup availability
- Enjoy music ASAP The marine stereo and speakers come ready to install
- Easily control music from any compatible Garmin MFD smart device or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone Technology gives full control of two separate audio zones
- Conveniently update software via Bluetooth technology from the Fusion-Link app on a compatible smart device
- Grow the audio system with compatible Fusion speakers subwoofers and amplifiers
Technical Specifications
X| RA60 - General Specification | |
|---|---|
| Warranty | 1 Year |
| Weight | 316g |
| Waterproof Rating | IPX6 IPX7 (Front Panel only When properly installed) |
| Power Input | 10.8 - 16V DC |
| Operating Temperature Range | 0 - 50&Deg;C |
| Current (Max) | 15A |
| Bluetooth Wireless Range | Up to 10m (30\') |
| ANT Wireless Range | Up to 3m (10\') |
| Wireless Frequencies / Protocols | Bluetooth: 2.4GHz @ +12dBm nominal ANT: 2.4GHz @ +7dBm nominal |
| Compass-Safe Distance | 150mm |
| RA60 Features | |
|---|---|
| Display | 2.3\" perimeter bonded monochrome dot matrix LCD |
| Built-In Amplifier | Class D (minimum 4 Ohm impedance) |
| Peak Power | 180W |
| Rated Power Output (4 Ohm) | 22W RMS x 4 @ 14.4V input 4ohm 10% THD |
| Fusion-Link Control | Yes (With compatible Apple & Android devices) |
| Fusion-Link Lite control | Yes (With compatible Garmin Smartwatches) |
| Multi-Zone Technology | 2 Zones |
| Bluetooth Wireless Technology | Yes |
| ANT Wireless Technology | Yes |
| DAB+ | Yes (DAB tuner built in) |
| Multi Language Interface | English / Dutch / French / German / Italian / Spanish |
| Software Updates | Over-the-air software updates via Bluetooth using the Fusion-Link App |
| RA60 Sources | |
|---|---|
| Sources | AM/FM Bluetooth AUX DAB+ |
| RA60 Connectivity | |
|---|---|
| Auxillary input | 1 x RCA input |
| AM/FM radio | One Motorola antenna connector |
| Speaker | 4 x speaker connections (2 amplified zones) |
| RCA Pre-Out (left right Subwoofer) | 1 Zone (requires external amplification) |
| Line Out | Zone 1: L & R (Requires external amplification) |
| Subwoofer Out | Zone (Requires external amplification) |
| EL Series Speakers | |
|---|---|
| Weight | 0.55Kg |
| Physical Dimensions | 175 x 57.5mm (6.93\" x 2.26\") |
| Water & Dust Rating | IP65 |
| Configuration | Full Range |
| Peak Power | 80W |
| RMS Power | 20W |
| Sensitivity (1W/1m) | 91dB |
| Frequency Response | 45Hz-16kHz |
| Nominal impedance | 4 ohms |
| Recommend Amplifier Power (RMS) | 20-40W / Channel |
| LED Lighting | No |
| Operating temperature range | 0°C - 50°C (32°F - 122°F) |
| Voice Coil diameter | 0.79\" |
| Cone Material | Polypropylene cone with cloth surround |
| Compass-Safe Distance | 254cm (100\") |
| Warranty/td> | 1 year |
| Speaker Mounting Dimensions | |
|---|---|
| Mounting Diameter | 130mm (5.12\") |
| Mounting Depth | 43mm (1.69\") |
Everything Needed To Amplify The Moment
Outfit any boat with an exceptional sound system at an outstanding value. A Fusion MS-RA60 marine stereo and EL Series marine speaker kit
World-Class Stereos Optimise the Audio
IPX6 Ane IPX7 Ingress Protection - Designed and engineered for the harsh marine environment the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
Modern Design And Aesthetics - Providing uniformity across the helm the black front face blends seamlessly into black glass panels complementing other electronics and MFDs for a tidy and elegant installation.
6.5” Fusion Speakers Produce Quality Sound On The Water
Designed And Engineered For The Marine Enviroment - The Fusion marine speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
Designed To Comply With ISO12216 - Tested to international standards for pressure and water ingress the Fusion marine speakers are designed and built for superior quality and robustness.
Quality Materials And Acoustic Engineering - The Fusion marine speakers incorporate high-quality materials and marine-specific design elements ensuring they look and sound great on the water.
In The Box
- MS-RA60 marine stereo
- One pair of EL Series classic white marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 metres) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
