Garmin

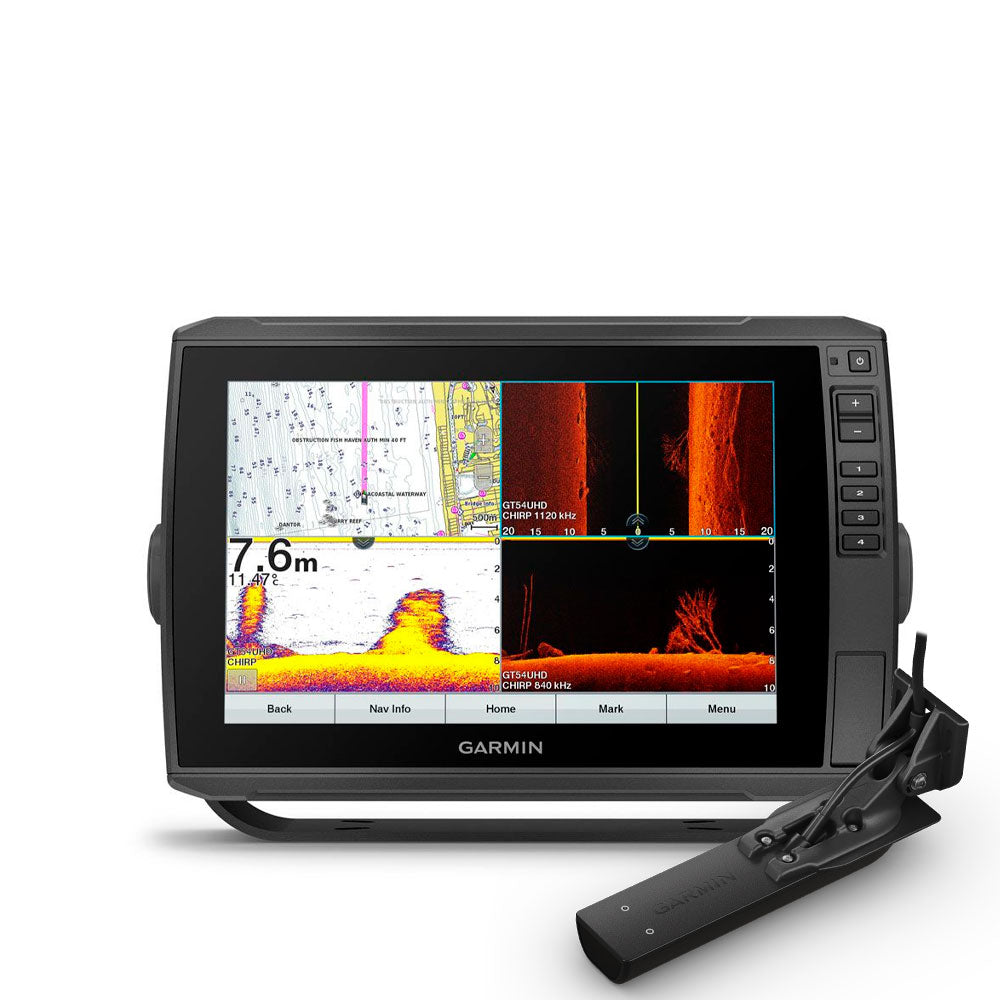

Garmin ECHOMAP Ultra 102sv & GT56UHD-TM

Garmin ECHOMAP Ultra 102sv & GT56UHD-TM

230-0100252601

£1,810.49
£1,810.49
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Keyed-assist 10” touchscreen
  • Crisp images of structure and fish with optional transducer.
  • Navigate confidently with optional Garmin Navionic+ Charts
  • Manage the marine experience with the ActiveCaptain app.
  • Share data sonar and charts with other devices.
  • Create sonar maps on the fly
  • Includes GT56UHD-TM Transom Mount Transducer

Technical Specifications

X
General
Dimensions 29.5 x 19.5 x 9.8 cm
Touchscreen with Keyed Assist ✓
Display Size 21.7 x 13.6 cm 25.4 cm (10\") Diagonal
Display Resolution 1280 x 800 pixels
Display Type WXGA Display
Weight 1.8Kg
Water Rating IPX7
Mounting Options Bail or Flush

Maps & Memory
Accepts Data Cards 2 microSD Cards
Waypoints 5 000
Track Points 50 000
tracks 50 Saved Tracks
Navigation Routes 100

Sensors
Built-in Receiver ✓
Receiver 10 Hz
NMEA 2000 Compatible ✓
NMEA 0183 Compatible ✓
GPS ✓
Supports WAAS ✓

Built-in Maps
Tidetables ✓

Optional Map Support
LakeVu G3 ✓
LakeVu G3 Ultra ✓
Garmin Navionics+ ✓
Garmin Navionics Vision+ ✓
TOPO ✓
Standard Mapping ✓
Garmin Quickdraw Contours ✓

Chartplotter Features
AIS ✓
DSC ✓
Fusion-Link ✓
GCV Black Box Sonar Support ✓
ActiveCaptain App Compatible ✓
Sailing Features ✓

Sonar Features & Specifications
Displays Sonar ✓
Power Output 600 W
Traditional Sonar Built-in (Single channel CHIRP 70/83/200 kHz L/M/H CHIRP)
ClearVu Built-in 260/455/800/1000/1200 kHz
SideVu Built-in 260/455/800/1000/1200 kHz
Panoptix Sonar ✓
Livescope ✓

Connections
NMEA 2000 Ports 1
NMEA 0183 Input Ports 1 Diffential
Garmin Marine Network Ports 2
12 Pin Transducer Ports 1 LVS Sonar
1 Scanning Sonar

Electrical Features
Power Input 10 - 32 VDC
Typical Current Draw at 12V 2.8A
Max Current at 12V 3A
Max Power Use at 10V 22.4W

Better Fishing Comes Built-in

Livescope Sonar Support - ECHOMAP Ultra supports a variety of Garmin transducers (sold separately) including LiveScope all-seeing live sonar.

Charts & Maps - Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content access to daily updates Auto Guidance+ technology and more.

Quickdraw Contrours - Create personalised fishing maps on-screen with 30 cm (1 foot) contours. Keep the data to on the device or share it with the Garmin Quickdraw Community on the Garmin Connect app.

Includes GT56UHD-TM Transom Mount Transducer - This all-in-one transducer offers ultimate versatility featuring Ultra High-Definition ClearVü and SideVü scanning sonars high wide CHIRP traditional sonar and more so you can spend more time catching fish.

Stay Connected On and Off the Water

Network Capable - Connect multiple compatible ECHOMAP Ultra 10″ and 12″ units or ECHOMAP Plus 7″ and 9″ units on the boat to share information - such as sonar user data and charts.

NMEA 2000 Network Compatibility - Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS engine data heading sensors such as the SteadyCast sensor and more from one screen.

ActiveCaptain APP - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin QuickDraw Community data and more.

Force Trolling Motor Compatibility - Take control of the most powerful and efficient trolling motor available route it to waypoints follow tracks and more from the bright IPS display on the chartplotter.

Easily Removable - Keep the ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount which allows it to be quickly installed and removed.

In The Box

  • ECHOMAP Ultra 102sv with worldwide basemap
  • GT56UHD-TM transducer
  • Power/data cable
  • Tilt mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
