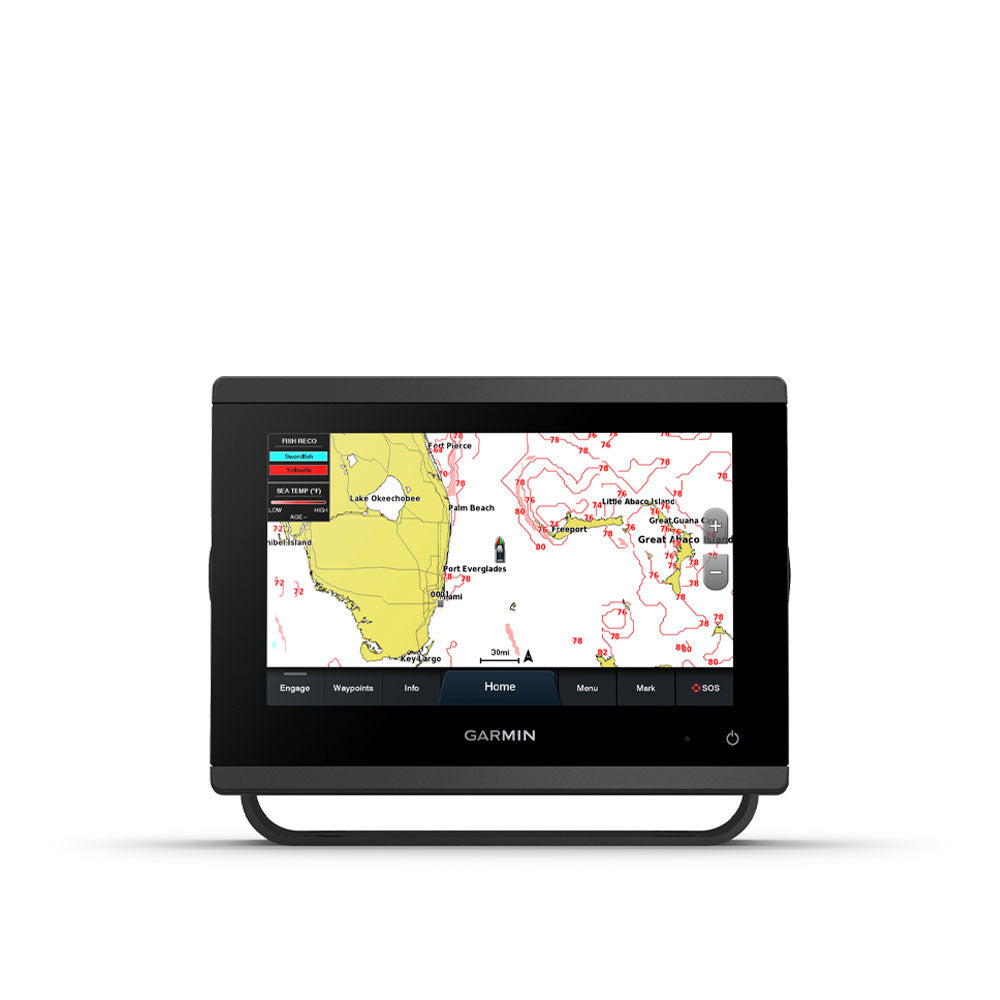

Garmin GPSMAP 723 - Chartplotter Only
Garmin GPSMAP 723 - Chartplotter Only
SKU:230-0100236500
Couldn't load pickup availability
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts for the best in Garmin navigation.
- Take the guesswork out of sailing with clear laylines and more — right on the screen.
- Manage your marine experience from nearly anywhere.
Technical Specifications
X| General | |
|---|---|
| Dimensions | 19.2 x 14 x 7.4CM (7.6\" x 5.5\" x 2.9\") |
| Input | Touchscreen |
| Display Size | 15.4 x 9.1cm 17.8cm (7\") Diagonal |
| Display Resolution | 1024 x 600 pixels |
| Display Type | WSVGA Display |
| Weight | 1.3Kg |
| Water Rating | IPX7 |
| Mounting Options | Bail Flush or Flat |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD Cards (back of unit) |
| Waypoints | 5 000 |
| Track Points | 50 000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| Built-in Receiver | ✓ |
| Receiver | 10 Hz High-sensitivity |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| Supports WAAS | ✓ |
| Built-in Maps | |
|---|---|
| Built-in Auto Guidance | ✓ |
| BlueChart (Coastal) | ✓ |
| LakeVu (Inland) | ✓ |
| Tidetables | ✓ |
| Optional Map Support | |
|---|---|
| LakeVu G3 | ✓ |
| LakeVu G3 Ultra | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Raster Chart Support | ✓ |
| Chartplotter Features | |
|---|---|
| Garmin Smartmode Compatible (Customisable Monitor Presets) | ✓ |
| AIS | ✓ |
| DSC | ✓ |
| Fusion-Link | ✓ |
| GSD Black Box Sonar Support | ✓ |
| GCV Black Box Sonar Support | ✓ |
| ActiveCaptain App Compatible | ✓ |
| GRID (Garmin Remote Input Device) Compatible | ✓ |
| Wireless Remote Compatible | ✓ |
| Sailing Features | ✓ |
| Spoken Audo Alerts | ✓ |
| OneHelm Support | ✓ |
| Sonar Features & Specifications | |
|---|---|
| Displays Sonar | ✓ |
| Traditional Sonar | Yes (With Separate GCV Black Box Sonar) |
| ClearVu | Yes (With Separate GCV Black Box Sonar) |
| SideVu | Yes (With Separate GCV Black Box Sonar) |
| Panoptix Sonar | ✓ |
| Livescope | ✓ |
| Connections | |
|---|---|
| NMEA 2000 Ports | 1 |
| NMEA 0183 Input Ports | 1 Diffential |
| NMEA 0183 tx Ports | 1 |
| Video Input Ports | 1 BNC |
| J1939 Ports | 1 |
| Garmin Marine Network Ports | 1 |
| USB Ports | ✓ |
| BNC External GPS Antenna Ports | ✓ |
| Bluetooth Calling | ✓ |
| ANT+ Connectivity | ✓ |
| Garmin Wi-Fi Network | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32 VDC |
| Typical Current Draw at 12V | 1.08A |
| Max Current at 12V | 1.45A |
| Max Power Use at 10V | 17.6W |
Get A Sharper View From A Connected Helm
With 60% more display pixels and nearly double the processing power of previous-generation 7-inch GPSMAP devices this crisp high-resolution chartplotter integrates seamlessly into the Garmin marine system.
Sail And Navigate With Ease
Faster sharper smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint it’s easy to retrofit this 7-inch plotter in a wider range of dash configurations.
Improved Display Optics - New higher-resolution 7-inch displays offer improved sunlight readability with 60% more pixels than previous-generation 7-inch GPSMAP devices.
Garmin SailAssist Sailing Features - View laylines race start line guidance enhanced wind rose heading and course-over-ground lines true wind data fields and tide/current/time slider wind angle set and drift wind speed and more.
Optional BlueChart G3 Vision Charts - These optional charts offer the best of Garmin and Navionics data Auto Guidance technology and other premium navigation features.
Connect To Everything On The Boat
Garmin Marine Network - Share information - such as maps user data radar and IP camera video among multiple compatible Garmin devices on the boat.
NMEA 2000 And NMEA 0183 Networks - Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.
ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community data and more.
Integrated ANT Technology - Connect with some of your favourite devices such as quatix marine watches gWind Wireless 2 transducers transducers GNX Wind marine instruments and wireless remote controls.
J1939 Connectivity - Now you can connect the chartplotter to different kinds of engines including select Yamaha engines.
OneHelm Feature - This exclusive feature brings together all the operations and capabilities of select third-party devices such as EmpirBus digital switching on one screen.
See The World Below
Panoptix Sonar Support - Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.
In The Box
- GPSMAP 723 chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 metres)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
