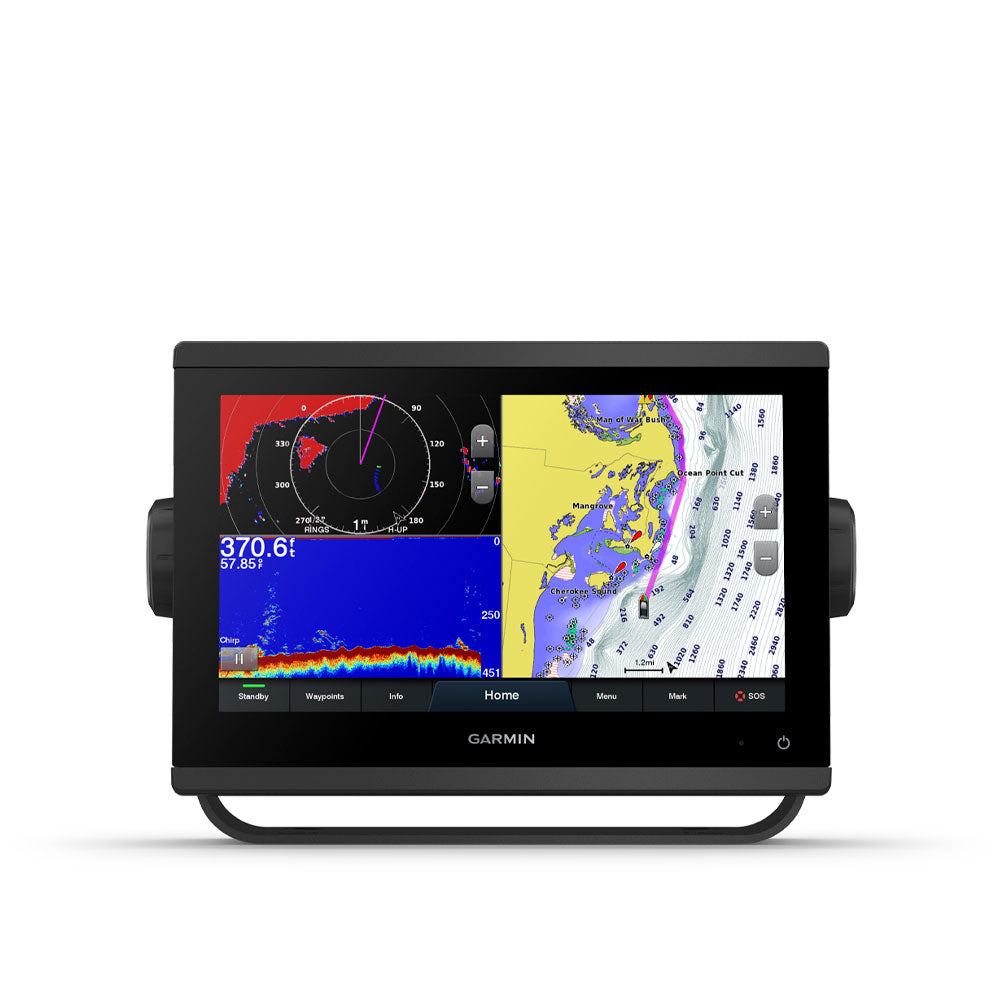

Garmin GPSMAP 923xsv - Chartplotter & Sonar
Garmin GPSMAP 923xsv - Chartplotter & Sonar
SKU:230-0100236602
Couldn't load pickup availability
- Easily integrate with more engines
- Connect to compatible third-party devices with OneHelm digital switching
- Easily build a marine system using the best of network connectivity
- Compatible with premium maps and charts for the best in Garmin navigation
- See below the boat with built-in sonar capabilities
- Manage the marine experience from nearly anywhere
Technical Specifications
X| General | |
|---|---|
| Dimensions | 23.3 x 16.2 x 7.6 cm (9.2\" x 6.4\" x 3\") |
| Input | Touchscreen |
| Display Size | 19.9 x 11.2cm 22.9 cm (9\") Diagonal |
| Display Resolution | 1280 x 720 pixels |
| Display Type | WXGA Display |
| Weight | 1.6Kg |
| Water Rating | IPX7 |
| Mounting Options | Bail Flush or Flat |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD Cards (back of unit) |
| Waypoints | 5 000 |
| Track Points | 50 000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| Built-in Receiver | ✓ |
| Receiver | 10 Hz High-sensitivity |
| NMEA 2000 Compatible | ✓ |
| NMEA 0183 Compatible | ✓ |
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| Supports WAAS | ✓ |
| Built-in Maps | |
|---|---|
| Built-in Auto Guidance | ✓ |
| BlueChart (Coastal) | ✓ |
| LakeVu (Inland) | ✓ |
| Tidetables | ✓ |
| Optional Map Support | |
|---|---|
| LakeVu G3 | ✓ |
| LakeVu G3 Ultra | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Raster Chart Support | ✓ |
| Chartplotter Features | |
|---|---|
| Garmin Smartmode Compatible (Customisable Monitor Presets) | ✓ |
| AIS | ✓ |
| DSC | ✓ |
| Fusion-Link | ✓ |
| GSD Black Box Sonar Support | ✓ |
| GCV Black Box Sonar Support | ✓ |
| ActiveCaptain App Compatible | ✓ |
| GRID (Garmin Remote Input Device) Compatible | ✓ |
| Wireless Remote Compatible | ✓ |
| Sailing Features | ✓ |
| Spoken Audo Alerts | ✓ |
| OneHelm Support | ✓ |
| Sonar Features & Specifications | |
|---|---|
| Displays Sonar | ✓ |
| Power Output | 1kW |
| Traditional Sonar | Built-in (Single channel CHIRP 70/83/200kHz L M H CHIRP) |
| ClearVu | Built-in 260/455/800/1000/1200kHz |
| SideVu | Built-in 260/455/800/1000/1200kHz |
| Panoptix Sonar | ✓ |
| Livescope | ✓ |
| Connections | |
|---|---|
| NMEA 2000 Ports | 1 |
| NMEA 0183 Input Ports | 1 Diffential |
| NMEA 0183 tx Ports | 1 |
| Video Input Ports | 1 BNC |
| J1939 Ports | 1 |
| Garmin Marine Network Ports | 1 |
| 12-Pin Transducer Ports | 1 |
| USB Ports | ✓ |
| BNC External GPS Antenna Ports | ✓ |
| Bluetooth Calling | ✓ |
| ANT+ Connectivity | ✓ |
| Garmin Wi-Fi Network | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32 VDC |
| Typical Current Draw at 12V | 1.37A |
| Max Current at 12V | 3.2A |
| Max Power Use at 10V | 40.2W |
Get A Sharper View From A Connected Helm
With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9-inch GPSMAP devices this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into the Garmin marine system.
See The World Below
Ultra High-Definition Scanning Sonar - Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid high-contrast colour palettes to help distinguish fish from structure. GPSMAP 943xsv also supports 1 kW CHIRP traditional sonar capabilities.
Panoptix Sonar Support - Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around the boat in real time.
Navigate With Eease
Faster Sharper Smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint it’s easy to retrofit this 9-inch plotter in a wider range of dash configurations.
Improved Display Optics - New higher-resolution 9-inch displays offer improved sunlight readability with 50% more pixels than previous-generation 9-inch GPSMAP devices.
Optional BlueChart G3 Vision Charts - These optional charts offer the best of Garmin and Navionics data Auto Guidance3 technology and other premium navigation features.
Optional Radar Bundle - To help avoid weather and traffic on the water the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with this GPSMAP chartplotter/sonar package.
Connect To Everything On The Boat
Garmin Marine Network - Share information - such as maps user data radar and IP camera video among multiple compatible Garmin devices on the boat.
NMEA 2000 And NMEA 0183 Networks - Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.
ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community data and more.
Integrated ANT Technology - Connect with devices such as quatix marine watches gWind Wireless 2 transducers transducers GNX Wind marine instruments and wireless remote controls.
J1939 Connectivity - Connect the chartplotter to different kinds of engines including select Yamaha engines.
OneHelm Feature - This exclusive feature brings together all the operations and capabilities of select third-party devices such as EmpirBus digital switching on one screen.
In The Box
- GPSMAP 923xsv chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 metres)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
