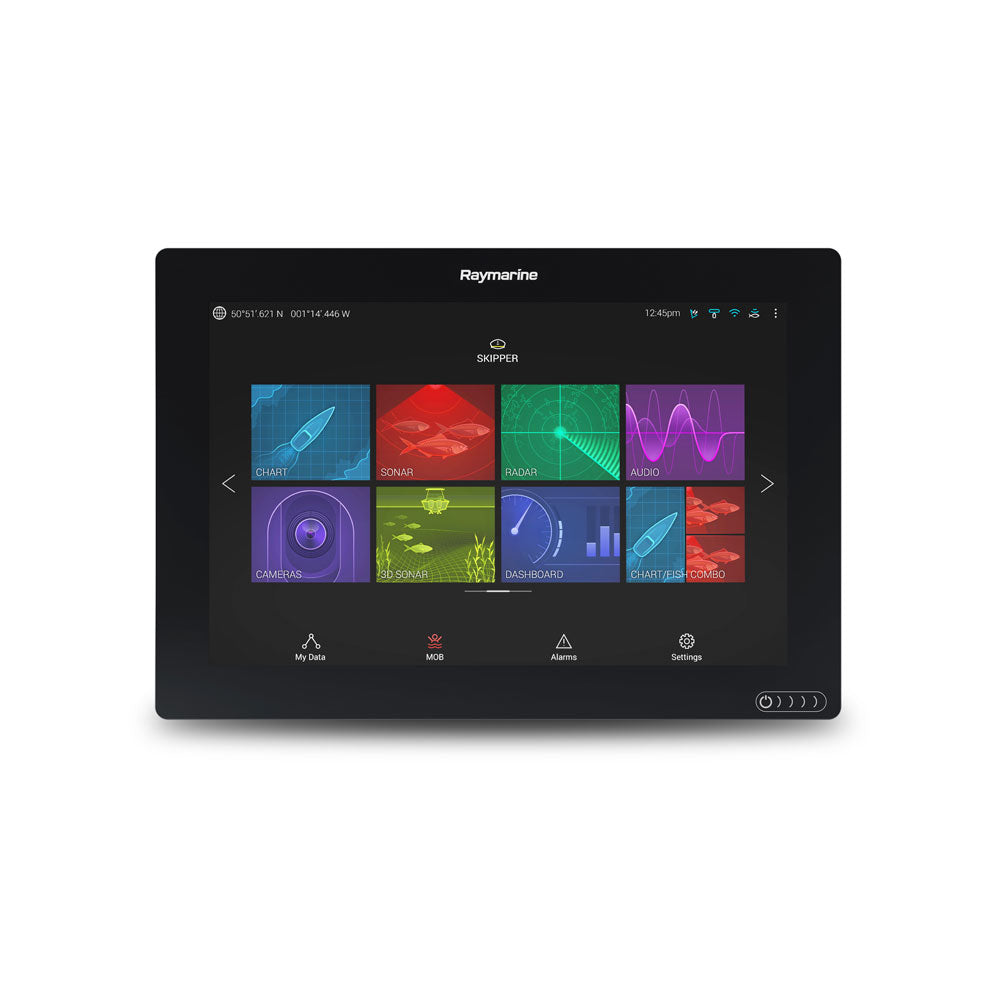

Raymarine AXIOM 12 - Display Only

• Display Size: 12.1\" IPS Optically Bonded LCD
• Display Resolution: 1280 x 800 WXGA (HD) IPS
• Display Type: Multitouch
• Brightness: 1 200 nits
• Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
• Dimensions: 314 x 217 x 77mm (12.36\" x 8.54\" x 3.00\")
• Weight: 2.84kg (6.25lbs)
• Mounting: Top Flush Front Bracket
• Waterproof Rating: IPX7
• Operating Temperature: -25deg C to +55deg C (-13deg F to 131deg F)
• Storage Temp: -30deg C to +70deg C (- 22deg F to 158deg F)
• Voltage: 12V DC (8 V to 16 VDC)
• Power Consumption (Max @ 12V DC): 15.48 Watts

A powerful multifunction navigation system from Raymarine with blazing fast quad-core performance and power; rugged all-glass displays optimized for flush or surface mounting; and a sleek buttonless design with swipe-to-power control. Featuring the new LightHouse OS which is fast fluid and easy to learn with an uncluttered interface - easily personalized for your style of navigating.

AXIOM is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar CHIRP Sonar FLIR thermal cameras audio integration instruments cameras and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

New Lighthouse OS
Fast fluid and easy to learn. An uncluttered interface is easily personalized for your style of navigating.

Rugged all-glass display
Optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.

Chartplotter (No built in Sonar capabilities)
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital Blue Latitude and more.
