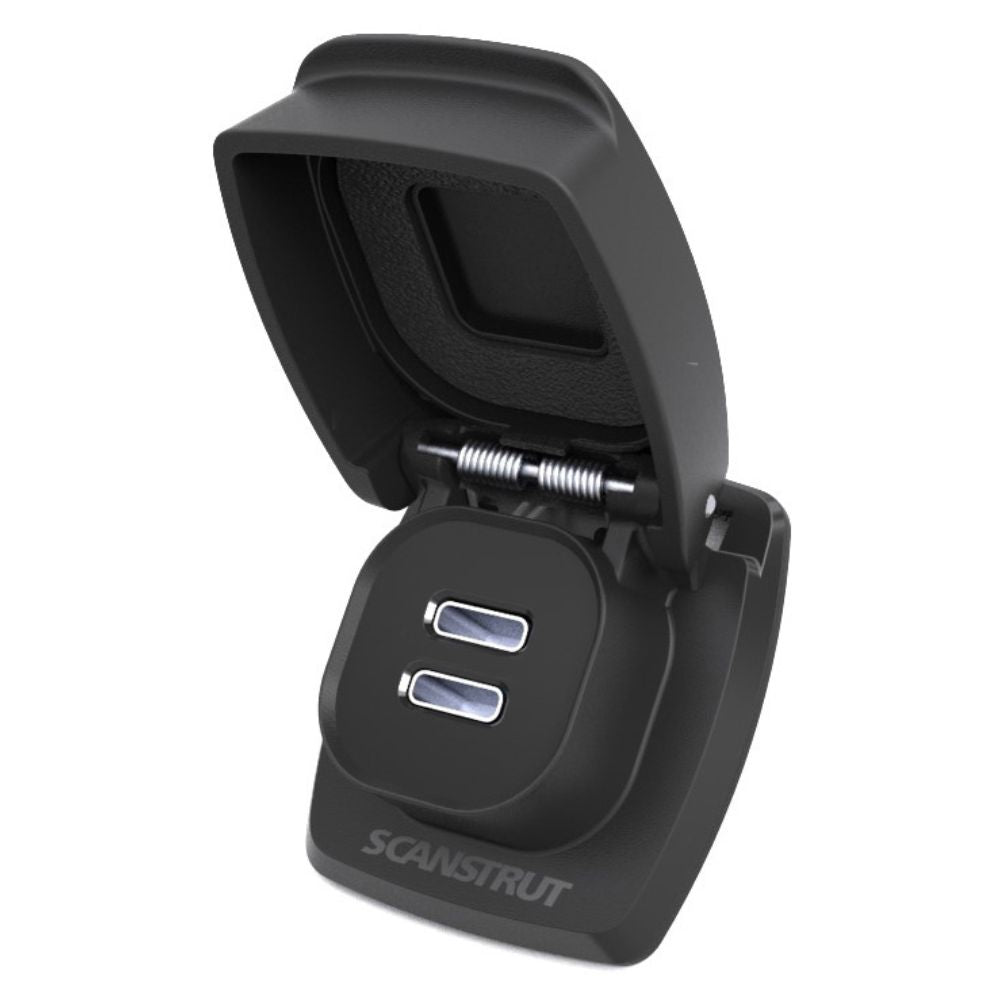

Scanstrut Flip Pro Fast Charge Dual USB-C Socket (Front or Rear Fit)

• IP rating: IPX4 waterproof when lid is closed
• Input voltage 10-30V DC (12/24V System)
• Input current Max: 6A (10A fuse recommended)
• Standby power draw: 0.01W
• USB – C output: 60W max on 24V system 36W max on 12V system

Designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets phones and any other USB-C powered devices onboard. When not in use the spring-loaded cap remains tightly closed protecting the ports from the elements.

Universal

• Universal fit for any USB-C connectors
• Fast charge (60W max) up to 2 devices at a time

Installation

• Easy Install using a Ø32mm (1.25”) hole saw
• Supplied as standard with an optional front fit bezel

Marine Ready

• IPX4 waterproof with the cover closed
• UV resistant
• 316 stainless hinge and spring

Key Information

To maximize charge performance use the cable supplied with your tablet phone etc. (C to C or C-lightning)

Phones charge at the same speed on either a 12 or 24V system but a 24V system must be used to get the full 60W output suitable for laptops.
