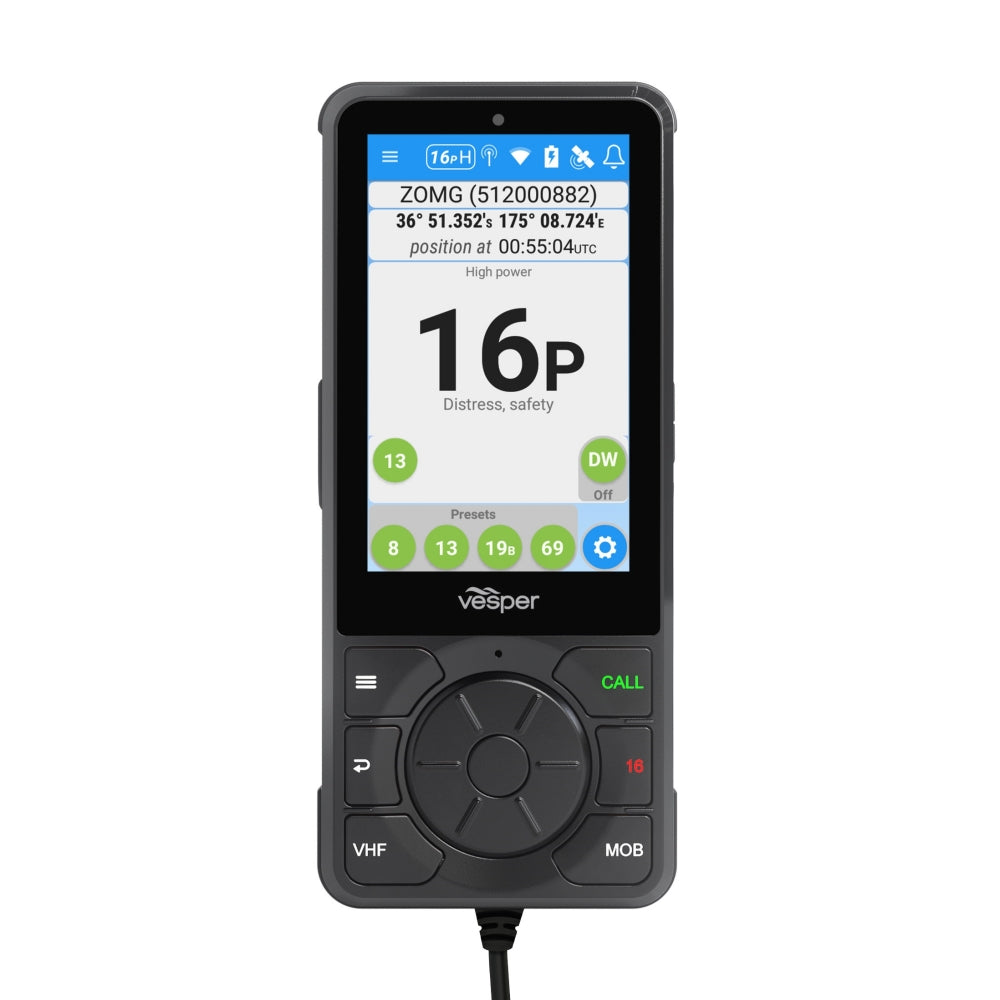

Vesper Cortex H1 Wired Handset with Bulkhead Connector for V1/M1

Vesper Cortex H1 Wired Handset with Bulkhead Connector for V1/M1

231-0100281600

£586.49
£586.49
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
  • Add multiple Cortex handsets to a Cortex V1 or VHF-ready Cortex M1 hub
  • Easy one-hand operation with the handset’s touchscreen click-wheel and dedicated select keys
  • High-fidelity speaker delivers up to 85 dBA of crystal-clear audio for superior VHF communication
  • Quickly initiate DSC direct calls by tapping the AIS boat symbol on the handset’s touchscreen
  • Communicate and control from anywhere onboard with Wi-Fi handset connectivity to the Cortex hub
  • 4″ touchscreen and rugged case are built to withstand harsh wet marine environments

Technical Specifications

X
General
Dimensions 164.8 x 71.8 x 21.4 mm
Weight 285g
Water Rating IPX8
Battery Type Lithium Polymer 10 Hours Operation
Full Re-charge in 2 hours
Operating Voltage 12-24V Compatible
Current Draw Max:1A
Operating Temperature -25°C - 55°C

Sensors
Ambient Light Sensor ✓

Audio
Amplifier 3 W Class D THD <5% @ 85dBA
Built-in Microphone ✓

Display
Screen LCD TFT Si 640 x 800 24-bit Colour
Touch Capacitive optically-bonded to LCD
Touch Feature Glove and salt water operable
Cable Length 2m
Channel 16 Shortcut ✓

Instrument Features
Backlight 600 cd/m2

The Cortex H1 Wired Handset is the voice and calling interface used for VHF and DSC calls. The handset\'s touchscreen display is the primary interface together with dedicated buttons and the Click-Wheel for swift navigation ease of operation and single-handed use. The touchscreen is purpose-built for the harsh marine environment and is designed and manufactured for use in wet conditions and with gloves.

The handset provides a screen to set up and manage the Cortex M1 hub view AIS target data and vessel instrumentation manage and monitor alarms and configure the remote vessel monitoring.

Upgrade a Cortex M1 SOTDMA smartAIS or add additional handsets for access to key functions in more places on board. Have situational awareness and VHF communication at the users fingertips no matter where they are on the boat.

The Cortex H1 comes bundled in the Cortex V1 VHF. Add additional H1 handsets for additional stations. Includes an H1 Bulkhead Bonnector and an H1 Cradle.
